codx <- c(-3,seq(-3,-2,0.01),-2)

cody <- c(0,dnorm(seq(-3,-2,0.01)),0)

curve(dnorm(x,0,1),xlim=c(-3,3),main='Standard Normal')

polygon(codx,cody,col='red')

curve(dnorm(x,0,1),xlim=c(-3,3),main='Standard Normal')

polygon(codx,cody, density = c(10, 20), angle = c(-45, 45))

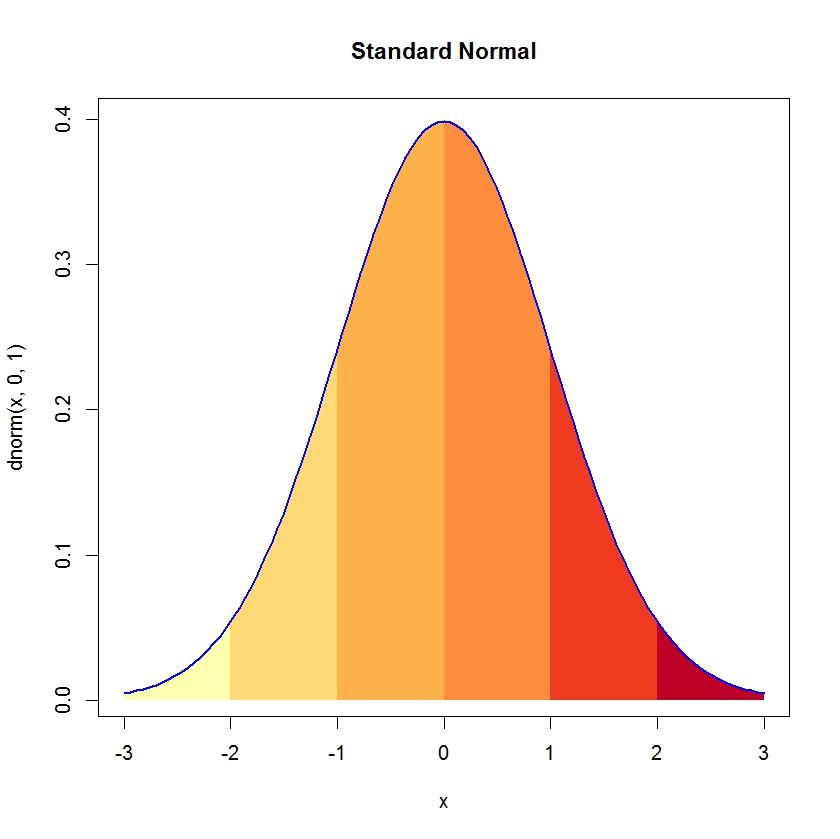

# shading multiple polygons

cord.x1 <- c(-3,seq(-3,-2,0.01),-2)

cord.y1 <- c(0,dnorm(seq(-3,-2,0.01)),0)

cord.x2 <- c(-2,seq(-2,-1,0.01),-1)

cord.y2 <- c(0,dnorm(seq(-2,-1,0.01)),0)

cord.x3 <- c(-1,seq(-1,0,0.01),0)

cord.y3 <- c(0,dnorm(seq(-1,0,0.01)),0)

cord.x4 <- c(0,seq(0,1,0.01),1)

cord.y4 <- c(0,dnorm(seq(0,1,0.01)),0)

cord.x5 <- c(1,seq(1,2,0.01),2)

cord.y5 <- c(0,dnorm(seq(1,2,0.01)),0)

cord.x6 <- c(2,seq(2,3,0.01),3)

cord.y6 <- c(0,dnorm(seq(2,3,0.01)),0)

curve(dnorm(x,0,1),xlim=c(-3,3),main='Standard Normal')

# brewing color for continious color filling

library(RColorBrewer)

plotclr <- brewer.pal(6,"YlOrRd")#

polygon(cord.x1,cord.y1,col= plotclr[1] , border = NA )

polygon(cord.x2,cord.y2,col=plotclr[2], border = NA )

polygon(cord.x3,cord.y3,col=plotclr[3], border = NA )

polygon(cord.x4,cord.y4,col=plotclr[4], border = NA )

polygon(cord.x5,cord.y5,col=plotclr[5], border = NA )

polygon(cord.x6,cord.y6,col=plotclr[6], border = NA )

curve(dnorm(x,0,1),xlim=c(-3,3),main='Standard Normal', col = "blue", lwd = 2, add = TRUE)

# totally shaded curve

x <- seq(from=-3, to=3,by=0.001)

gb_gradient <-colorRampPalette(c("blue", "lightgreen", "red"))

cols <- gb_gradient (length(x))

curve(dnorm(x,0,1), xlim=c(-3,3))

segments(x, rep(0,length(x)),x,dnorm(x,0,1) , col=cols, lwd=2)

curve(dnorm(x,0,1), xlim=c(-3,3), col = "red", lwd=2, add = TRUE)

cody <- c(0,dnorm(seq(-3,-2,0.01)),0)

curve(dnorm(x,0,1),xlim=c(-3,3),main='Standard Normal')

polygon(codx,cody,col='red')

curve(dnorm(x,0,1),xlim=c(-3,3),main='Standard Normal')

polygon(codx,cody, density = c(10, 20), angle = c(-45, 45))

# shading multiple polygons

cord.x1 <- c(-3,seq(-3,-2,0.01),-2)

cord.y1 <- c(0,dnorm(seq(-3,-2,0.01)),0)

cord.x2 <- c(-2,seq(-2,-1,0.01),-1)

cord.y2 <- c(0,dnorm(seq(-2,-1,0.01)),0)

cord.x3 <- c(-1,seq(-1,0,0.01),0)

cord.y3 <- c(0,dnorm(seq(-1,0,0.01)),0)

cord.x4 <- c(0,seq(0,1,0.01),1)

cord.y4 <- c(0,dnorm(seq(0,1,0.01)),0)

cord.x5 <- c(1,seq(1,2,0.01),2)

cord.y5 <- c(0,dnorm(seq(1,2,0.01)),0)

cord.x6 <- c(2,seq(2,3,0.01),3)

cord.y6 <- c(0,dnorm(seq(2,3,0.01)),0)

curve(dnorm(x,0,1),xlim=c(-3,3),main='Standard Normal')

# brewing color for continious color filling

library(RColorBrewer)

plotclr <- brewer.pal(6,"YlOrRd")#

polygon(cord.x1,cord.y1,col= plotclr[1] , border = NA )

polygon(cord.x2,cord.y2,col=plotclr[2], border = NA )

polygon(cord.x3,cord.y3,col=plotclr[3], border = NA )

polygon(cord.x4,cord.y4,col=plotclr[4], border = NA )

polygon(cord.x5,cord.y5,col=plotclr[5], border = NA )

polygon(cord.x6,cord.y6,col=plotclr[6], border = NA )

curve(dnorm(x,0,1),xlim=c(-3,3),main='Standard Normal', col = "blue", lwd = 2, add = TRUE)

# totally shaded curve

x <- seq(from=-3, to=3,by=0.001)

gb_gradient <-colorRampPalette(c("blue", "lightgreen", "red"))

cols <- gb_gradient (length(x))

curve(dnorm(x,0,1), xlim=c(-3,3))

segments(x, rep(0,length(x)),x,dnorm(x,0,1) , col=cols, lwd=2)

curve(dnorm(x,0,1), xlim=c(-3,3), col = "red", lwd=2, add = TRUE)
